Engineers from UC Berkeley have developed a brand new approach for creating stretchable, wearable sensors that enable medical researchers to prototype designs quicker and at decrease prices than conventional manufacturing strategies. The approach replaces the normal photolithography methodology in favor of a vinyl cutter, which proposes to save lots of each money and time when prototyping.
Most wearable sensors within the medical discipline are used to realize information over prolonged time durations and normally are available in adhesive bandages or as implants. These designs usually pack flat wires often called interconnects, together with sensors, energy sources and antennas to transmit the collected information wirelessly. Furthermore, their stretchable designs elicit the photolithography methodology of producing to supply zigzag patterns on a skinny substrate that may be prolonged and retracted with minimal degradation. It’s additionally costly to supply.
To keep up that flexibility however considerably scale back prices, the scientists included an “island-bridge” construction. These islands are inflexible platforms that home electronics, sensors, and different elements linked by versatile bridges. The workforce made their wearable, versatile sensors by attaching PET (Polyethylene Terephthalate) to a mylar substrate. They then used a vinyl cutter to form them and create two sorts of cuts – a tunnel lower, which slices by way of the highest PET layer however leaves the Mylar substrate untouched, and a by way of lower that carves by way of each layers.

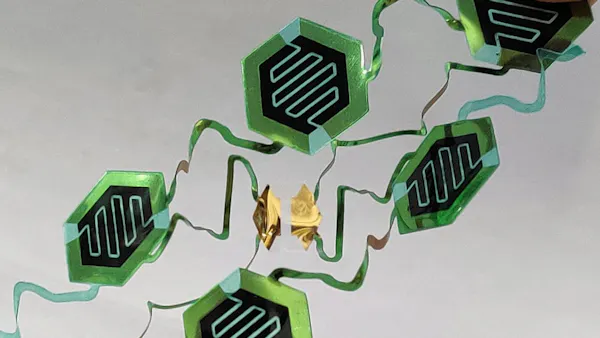

A stretchable “good mesh” made utilizing the fabrication course of. (📷: Peisheng He/UC Berkeley))
Tunnel cuts are used to hint the trail of the interconnects. These cuts are then peeled off, leaving the interconnect patterns on the mylar substrate. Your entire sheet is then coated with gold, leaving the mylar floor with well-defined interconnects and uncovered openings that function contact pads for connecting sensors or different islands. The engineers designed a pair of gadgets to show the brand new approach, together with one which mounts below the nostril and screens respiration through temperature and one other outfitted with waterproof supercapacitors for shortly recharging gadgets in opposed situations.
