Whenever you suppose “wearable” gadget, you in all probability take into consideration one thing to connect to an individual, possibly your self! Nonetheless, {an electrical} engineer with a background in RF, sign processing, management, and statistics, Jason Too got here up with a brand new wearable thought. Tracer is wearable for issues! Its onboard sensors will be strapped to an object and stream knowledge over BLE to a cellular gadget.
“Have you ever ever wished to stay an IMU on a factor to hint its pose and movement? Tracer supplies dependable, high-performance, and cost-efficient monitoring of objects for varied purposes.” — Jason Too, Tracer creator
The present Tracer model is a board that seems to be about 55mm by 50mm. You need to use two easy choices to mount Tracer to an object. The primary is slipping a velcro strap by way of the PCB’s slotted cutouts. Three M2 connectors are the opposite securing methodology.
Tracer Rev B (📷: github.com/elektroThing)
An ESP32-PICO-D4 is the core SoC. It supplies 4 MB of Flash reminiscence, WiFi, and Bluetooth Low Power (BLE) help. Moreover, the board incorporates an LSM6DSL IMU, a six-degrees-of-freedom (DoF) module from ST Microelectronics. Additionally from ST is a VL53L0X time-of-flight (ToF) sensor.
When powered by a coin cell battery, Too expects Tracer to seize knowledge at 100 Hz for as much as 5 hours.
The instance code makes use of the ESP-IDF toolchain. The really useful knowledge path contains utilizing a Madgwick Orientation Filter. This filter fuses the info from the IMU right into a normalized output as Euler angles. However it’s best to be capable to program with Micropython and Arduino.
Too recommends utilizing Phyphox to seize the info from Tracer. Phyphox is an Android and iOS app that communicates with BLE and might settle for varied sensor enter varieties. The app graphs knowledge instantly on the cellular gadget. At the moment, there’s restricted help for Android to output through Bluetooth.

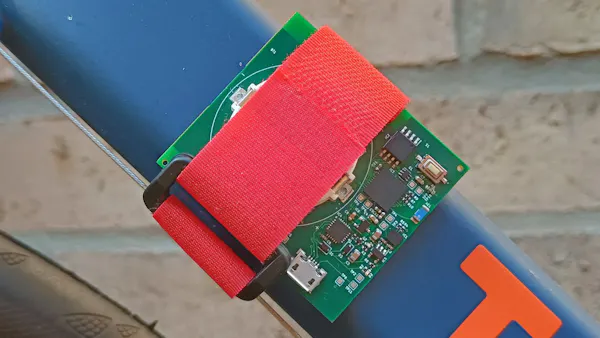

Hint with velcro strap (📷: github.com/elektroThing)
In case you are fascinated by strapping one to an object, take a look at the Tracer challenge web page. The GitHub repo solely has a schematic and a few code, however Too says the whole design information will likely be accessible quickly. Additionally, one other revision is within the works that ought to make Tracer’s PCB even smaller than it’s now!
