We’re suckers for an excellent, show based mostly venture.
Whereas a lot of our write-ups will deal with wealthy, colourful, pixel-packed IPS panels, or extra lately, low-power digital ink-based shows, there is no college fairly like the old fashioned in the case of the attribute feel and appear of yesteryear!
Earlier than we had been blessed with manufacturing strategies which have enabled our myriad trendy show applied sciences, designers needed to dwell a bit more durable on the right way to go about displaying info to customers.
From Ferranti-Packard “flip-dot” arrays to silkscreened split-flap shows, older show tech at one level was extra mechanical than digital.
(📷: instructables.com/FlipDot-Show)
As lovely as these electromechanical masterpieces are to have a look at — and much more pretty to hearken to, there’s one factor that they’re doubtlessly missing — and that is mechanical reliability.
Do not get me flawed, they’re designed in addition to might be for the constraints of the time, however they’re considerably restricted of their software on account of two elements — measurement, and the transferring components that make up their development.
These shows will just do effective when put in in a static software — these of us of a sure age will all have seen such shows at locations like rail stations (although they’re now generally changed with like-for-like LED variations).
They are going to fare much less reliably when put in in say, an plane, with dynamic loading and mechanical forces being consistently utilized. So the aviation business turned to one thing new for his or her show wants on the time — one thing referred to as an in-plane show.
(📷: industrialalchemy.org/articleview.php?merchandise=511)
For its time, the in-plane (aka one-plane) show was a marvel of miniaturization. In a position to show mounted frames of content material — be they string worth, or numerical constants, mounted on the time of manufacture, they pulled some intelligent methods to cram every little thing wanted into the miniature show module type issue.
Wanting a an exploded view beneath, we will pick an array of incandescent lamps, together with lenses and matrix of a number of apertures — these outline what information will be displayed on the display screen.
(📷: industrialalchemy.org/articleview.php?merchandise=511)
The illustration beneath does a reasonably good job of correlating the innards of the in-plane show module, proven above, to their practical descriptions.
(📷: industrialalchemy.org/articleview.php?merchandise=511)
As with practically each little bit of retro-tech that we discover, there are individuals who have set about discovering methods of integrating them into extra trendy tasks — both for the nostalgia, or extra usually for the sheer novelty of issues!
After a latest flurry of exercise from Twitter customers @brentvoltz and @robcruickshank shone gentle upon the novelty of those shows, Glen Akins merely needed to become involved with the enjoyable.

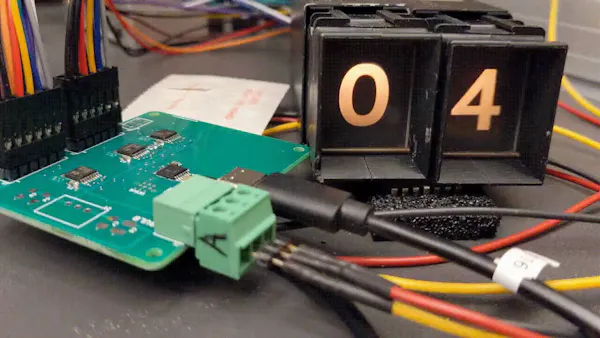

With two, single digits in hand Akins has whipped up a simple interface board that permits his host laptop to show the values “00” to “99” in all their superb, illuminated status.
The satan is within the particulars.
Though little greater than a set of PIC-controlled shift registers, the satan is within the particulars with this board, owing to a intelligent alternative of speciality shift register that permits Akins to maintain the components rely low on this PCB.
Whereas many a microcontroller, or practically any collection of shift register might deftly drive an array of LED indicators — keep in mind, these shows are deliciously retro-tech-tastic — and as a substitute depend on incandescent lamps, together with their larger present consumption, so as to illuminate the show movies.
Whereas we have seen some efforts through the years to retrofit some LED gentle sources instead of the upper present consumption incandescent lamps which can be usually present in these show models — Akins is maintaining it old fashioned, selecting to as a substitute use his shows as-supplied, and coping with the upper present that these lamps require.
Whilst you might bolt a Darlington array onto many a typical shift register, would not it’s good if you did not have to double up on chips to take care of the elevated present?
A Texas Devices TPIC6C595 shift register steps as much as the plate right here — and whereas that identify appears considerably acquainted, owing to the ‘595 suffix, it is a new half for me, and one that appears to be decidedly helpful for future tasks.
Wanting loads like customary shift register, as much as the fourth column of symbols within the above diagram, we will see that the TPIC6C595 provides an array of open-drain FET units — one for every output on the shift register.
This built-in gadget permits the array to sink much more present than the logic itself would be capable of, with this half quoting as much as 100mA per channel — good for sinking the required present needed so as to gentle the sign lamps discovered inside the lamp array of the show.
Does it work?
After all it does, and does not it look nice whereas doing so?
We would say that taking the time to work with the prevailing bulbs is a worthy choice — because the look of the show is maintained, maintaining that heat, tender glow of the filament lamps.
Akins is understood for respiratory new life into the marginally older tech of days passed by and we might suggest following his Twitter (@bikerglen) for fast write-ups on all types of barely extraordinary bits of retro-tech!
