An summary
A traditional desk lamp is fairly easy with its singular bulb that may doubtlessly shine in additional than a single colour if it comprises an RGB component and clever management system. Andreas, who goes by Ananords, nonetheless, was capable of create a much more fascinating model known as the Neowave that not solely lights up in an excellent show of colours, however can be capable of showcase fascinating patterns round its sides with the faucet of a button.
The elements
For this lamp, Ananords chosen the Wemos D1 growth board, which incorporates a highly effective ESP8266 processor that has Wi-Fi connectivity for integrations with the web. The LEDs consisted of two meters of the everyday 5V WS2812B individually addressable lights that could possibly be lower as much as match inside the lamp’s enclosure and be powered by way of USB. And eventually, contact controls had been made obtainable to the consumer with a few TTP223 capacitive contact sensors for a complete of 4 potential instructions.
Design and meeting
On the core of the lamp is a single cylinder that’s simply massive sufficient for a 16×16 matrix of LEDs to wrap across the exterior. The three wires are handed down by way of the middle and to a base plate, which homes the Wemos D1 module together with an influence connector. After securing the 3D-printed based mostly to the LED tube, the 2 TTP223 capacitive contact modules had been hooked up slightly below the highest floor, and at last, the outer wavy cylinder, therefore the title “Neowave”, was additionally hooked up to the bottom.
The firmware

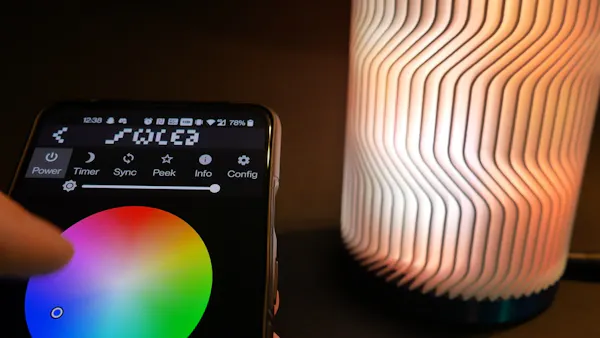

Slightly than arising together with his personal superior management resolution, Ananords was capable of benefit from a preexisting firmware/software program resolution known as WLED. It consists of superior firmware for the ESP8266 that permits the chip to speak with cloud companies/webhooks, serial, or a websocket so as to show preset colours/patterns. On the software program aspect, the WLED cellular app can be utilized to manage the lights from anyplace with a cellular gadget.
Utilizing the lamp
As seen in his video, Ananords’ Neowave RGB lamp is a inventive tackle an on a regular basis object. Watching animations reminiscent of waves, bubbles, a candle, and even only a strong colour can turn out to be mesmerizing. To learn extra about this undertaking, you may go to its writeup right here on Instructables for extra data and to obtain the design recordsdata.
