SparkFun’s Paul Clark has put collectively a tutorial on calculating the situation of a sound, combining the corporate’s SparkX Qwiic Sound Set off board and a high-accuracy GNSS breakout board.

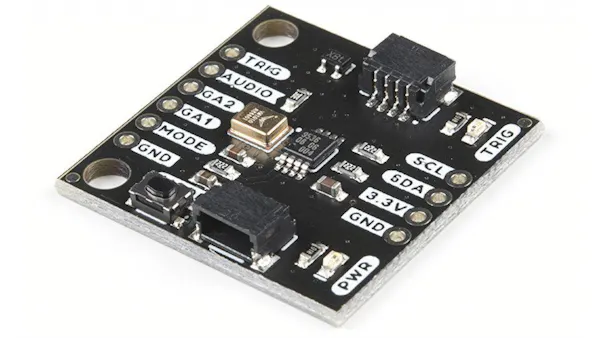

“The VM1010 [on the Qwiic Sound Trigger] is a intelligent little gadget which may be positioned into a really low energy ‘Wake On Sound’ mode,” Clark explains. “When it detects a sound, it wakes up and pulls its TRIG (DOUT) pin excessive. The u-blox ZED-F9P GNSS receiver is an outdated buddy. It’s a top-of-the-line module for prime accuracy GNSS location options together with RTK [Real-Time Kinematic] that’s able to 10mm [0.39″], three-dimensional accuracy. One thing that doesn’t get mentioned as a lot because it ought to is that the ZED-F9P can even seize the timing of a sign on its INT pin with nanosecond decision!”
This high-accuracy timing system can inform you the place a noise is coming from. (📷: Paul Clark/SparkFun)
Combining the 2, Clark factors out, provides you a noise-detection system that makes use of some intelligent code — and information of the pace of sound — to calculate precisely the place a sound is coming from in a given space. The trick: constructing not one, however two detectors.
“However how can we calculate the situation if all now we have is the time every sound set off hears the footstep,” Clark asks. “Now we have a ZED-F9P at every finish and timestamp every set off occasion very precisely. We are able to use the time distinction to calculate the situation, as a result of we all know how far aside the sound triggers are.”
It is a intelligent method, however one which might get costly fairly shortly: Two sound locators, as used within the first a part of Clark’s tutorial, affords you positioning when it comes to distance from the locators themselves; to get an precise two-dimensional location, you might want to add a 3rd locator and triangulate the sign.
By including a 3rd detector, it is attainable to triangulate a sound’s supply in 2D house. (📷: Paul Clark/SparkFun)
Whereas the Qwiic Sound Set off, which is out there while-stocks-last as board in SparkFun’s experimental SparkX vary, prices simply $9.95 earlier than quantity reductions, the corporate’s GPS-RTK-SMA ZED-F9P breakout is a hefty $274.95 — making the two-dimensional sound locator invoice of supplies $854.70 earlier than you even add microcontroller boards.
Each the one-dimensional and two-dimensional sound locator initiatives, with supply code and hyperlinks to buy the elements, are actually accessible on the SparkFun tutorials website.
