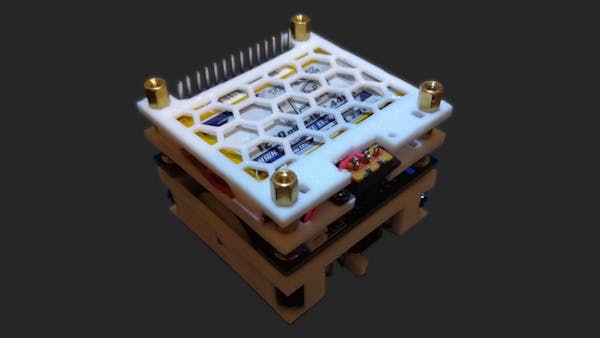

The Mini Dice Robotic, a 5x5cm differential drive robotic, is designed to be as easy, small, and low-cost as potential whereas nonetheless together with all the fundamental options. The scale is dictated by what is required to accommodate the motors, two M10 brushed motors. The bottom design additionally consists of six IR reflective sensors for contactless collision sensing — this plus the motors make up the naked minimal for a purposeful wheeled robotic. Being so small and cheap, nevertheless, makes them splendid for cooperative methods and swarm robotics.
Further options, together with a primary management and communication board, a sensor board, and a devoted processing board, are added by stacking modules or PCBs on high. Step-by-step directions for assembling the bottom can be found by way of in NotBlackMagic’s mission’s web page, together with schematics and specs for the motor driver board, collision sensor board, motor encoder board, body, and energy provide.
The chassis of the robotic is 3D-printed with .STL recordsdata which can be available and all different components are simply ordered on-line. The core of the motor driver board is the STM32F103, which controls the twin H-bridge motor driver STSPIN240 and acquires alerts from the collision sensors and motor encoder board. The Mini Dice Robotic makes use of a 14-pin 2.56mm header because the spine connector shared by all modules, although extra headers could be included on different boards to permit for enlargement. Nevertheless, this header is what permits the management communications and have to be obtainable to all modules/boards.
Whereas the BOM, schematics, and related recordsdata are all obtainable for anybody to construct their very own model of the bot, this mission continues to be a piece in progress. The present model depends on a couple of particular modifications and meeting of each the encoder and collision sensor boards which aren’t splendid, in addition to the truth that each are soldered to the motor driver board. On this first model of the bottom and PCBs, as an illustration, the bottom must be modified so the sensor board can really slot in place. As tweaks occur, the mission will likely be up to date, although its present model is obtainable as a place to begin for anybody within the bot.
