Issues with the Fireplace TV Stick
Streaming sticks are useful little gadgets that enable for something with an HDMI port to show all kinds of tv and web content material. And on most televisions, the HDMI port is positioned proper subsequent to a USB port, which is what usually will get used to energy the stick. However there’s a drawback: this USB port usually solely has a ranking of 500mA present draw at max, and it may be exceeded when an replace happens or throughout boot. The answer is so as to add a buffering circuit in between the USB port and streaming stick that permits additional energy to be given when wanted whereas conserving the draw from the USB port to 500mA.
Measuring present draw

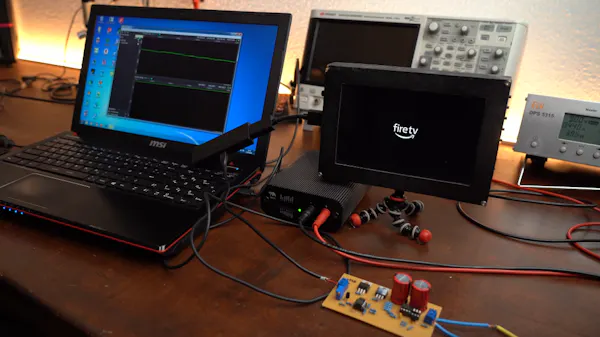

With the intention to get a greater understanding of the issue, Scott, who runs {the electrical} engineering YouTube channel GreatScott!, acquired out a present measurement gadget and commenced plotting its values in real-time. He noticed that the related Fireplace TV Stick usually exceeds the 500mA restrict whereas booting up and scrolling by means of content material libraries, though it settles at round 200mA whereas streaming movies.
Understanding the shop purchased resolution
His retailer purchased resolution requires a fast cost earlier than use, and that is because of its inside lithium ion battery cell, which gives additional boosts in energy when required by the connected load. Wanting again on the present draw plot revealed the Fireplace TV Stick now solely drew a most of 500mA always, thereby proving the answer labored. One main draw back was the inclusion of the lithium ion battery, as it may well solely stand up to a pair thousand charging cycles earlier than degrading and wishes additional safety circuitry to forestall overloading/fires.
Constructing the DIY model
The apparent technique to repair the problem was to alter out the battery for a pair of high-capacity supercapacitors that may stand up to present peaks whereas being rated for practically 300,000 whole cost/discharge cycles. Scott designed a circuit round these capacitors as a way to restrict their whole present draw from the USB port to 500mA and letting the Fireplace TV Stick draw 500mA as soon as they’re charged.
As seen in his YouTube video, the whole system was capable of obtain steady present supply whereas having the added advantages of an extended lifespan and less complicated circuit, all at half the worth of the retail model. You’ll be able to view this put up to see the schematic and invoice of supplies.
