Engineer Jyoti Singh has teamed up with SB Elements to make it potential to run Raspberry Pi HAT add-ons wirelessly — connecting as many HATs as you wish to a single driving system, even when they’re duplicates or use the identical pin performance.
“PiSquare makes use of Socket programming to speak A number of (‘n’ numbers of HATs) Raspberry Pi HATs wirelessly,” Singh writes of his creation, designed to be used with {Hardware} Connected on Prime (HAT) add-ons for the Raspberry Pi. “With PiSquare You’ll be able to create the server from Raspberry Pi and run as many HATs as you want as a consumer to run a number of Raspberry Pi HATs.”

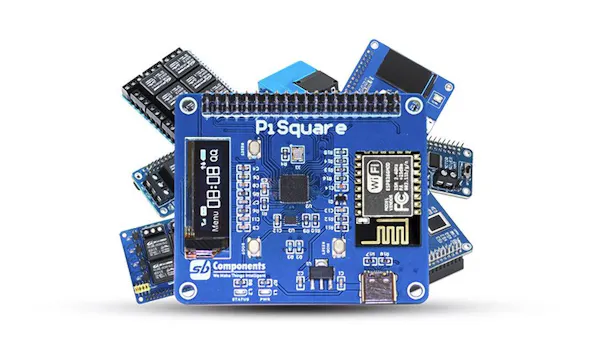

The PiSquare board hosts a Raspberry Pi RP2040 microcontroller, an Espressif ESP8266-based ESP-12E microcontroller module with on-board Wi-Fi connectivity, a USB Sort-C port for energy, a 0.91″ OLED show, and 16Mb (2MB) of flash reminiscence — plus a 40-pin general-purpose enter/output (GPIO) header to just accept the HAT.
In its fundamental mode, the PiSquare is designed to attach a number of HATs to a single Raspberry Pi. In contrast to different multi-HAT options, every HAT is managed independently — that means it is potential to attach a number of hats, which all use the identical I2C tackle or UART connection, for instance, through the use of a single PiSquare per HAT.
The board has a second use, too, and it is one Singh claims may assist tackle the continuing scarcity of Raspberry Pi boards. “You can even make the PiSquare […] a grasp for all the opposite PiSquare [boards],” Singh explains, “[or] run any HAT on single PiSquare and management it by way of your cellphone” — that means you do not really want a Raspberry Pi in any respect.
The board can function as a consumer to Raspberry Pi or smartphone, or as a server for different PiSquare boards. (📷: Jyoti Singh)
This is not Singh’s first Raspberry Pi add-on: Again in July 2021 he launched the PiRelay 8, an eight-relay enlargement board with built-in show designed for the Raspberry Pi’s GPIO port; in October the identical 12 months he launched the PicoCube, a single-color 4×4×4 LED dice designed for the Raspberry Pi Pico. Each campaigns have been funded efficiently.
The crowdfunding marketing campaign for the PiSquare board is now reside on Kickstarter, with bodily rewards beginning at £9 for a single PiSquare (round $12). {Hardware} is predicted to start transport in June, when the system will go on sale at a beneficial retail value of £20 (round $26).
