Jey Spulka, creator of the TeHyBug household of environmental knowledge trackers, has launched a brand new product: a Wi-Fi-connected air high quality monitor inbuilt a USB dongle kind issue and pushed by an Espressif ESP8285.
The sensor board is constructed across the SenseAir S8 carbon dioxide sensor, a non-dispersive infrared (NDIR) carbon dioxide sensor able to measuring from 400 to 2,000 elements per million (PPM) COâ‚‚ with a ±3 per cent accuracy. Knowledge captured from the sensor are transmitted through an Espressif ESP8285 operating the person’s selection of appropriate good house firmware, whereas an onboard RGB LED offers native alert capabilities.

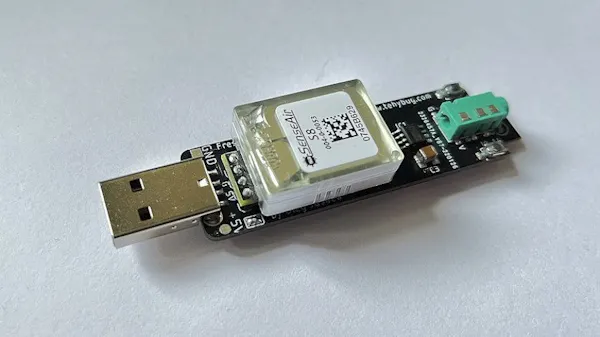

Jey Spulka’s new sensor board has on-board carbon dioxide monitoring and TeHyBug enlargement. (📷: TeHyBug)
For these looking for extra knowledge, the board is accessible with an non-obligatory BMP280 temperature, humidity, and air stress sensor for full environmental monitoring. If that is nonetheless not sufficient, a 3.5mm-jack sensor connector on the rear of the board helps any TeHyBug-compatible add-on units.
“It’s simple to flash the module because it has an USB to UART chip on board,” Spulka notes. “You need to use Arduino [IDE], PlatformIO, [or] EspHome to add your firmware to the board. Maintain the Mode button, hit the Reset button, and launch the Mode button to place the ESP8285 Module into the flashing mode.”
The sensor board is accessible from the TeHyBug Tindie retailer now at $69, with the non-obligatory BMP280 sensor including $6 to the worth.
