The aim and a few preliminary concepts
When a bout of nervous vitality abruptly strike, many individuals discover themselves turning to small fidget toys to launch it. Within the newest episode of the ingredient 14 Presents collection, common host Katie Dumont wished to give you her personal model that integrated a number of totally different audio, visible, and tactile experiences right into a single entertaining dice. From the very starting, she deliberate to include six distinctive sides that would all be fed from the identical energy supply and never rely upon one another as a way to operate as supposed. The dice’s faces would additionally depend on enter from the person and supply a rewarding output in response.
Displaying the present standing
For Dumont’s fidget dice’s first face, she determined to go together with a easy “prompt gratification” button that merely toggles on or off a hoop of LEDs. Along with the button, she positioned a swap that controls energy going to the system and an extra button that have to be pressed as a way to flip the whole dice on. This similar PCB additionally housed the facility administration circuitry which takes in energy from a lithium polymer battery cell, boosts its voltage, after which divides it amongst the opposite faces of the dice. When the battery’s voltage drops too low, a smaller crimson LED on the entrance lights as much as alert the person.
Drawing photos on an LCD
The fidget dice’s second face was fairly a bit extra advanced than the beforehand described one, since as an alternative of utilizing just a few LEDs and a button, this panel featured an LCD, microcontroller, and tiny joystick that may all be used collectively to attract an image on the display. The underside of the PCB incorporates an AVR64DA32 IC which was liable for taking in inputs from the 5-direction swap (up, down, left, proper, and a vertical press) and plotting darkish pixels onto the OLED module. An auxiliary button was then positioned subsequent to the multi-directional one which is used to clear the show.
Enjoying with logic gates

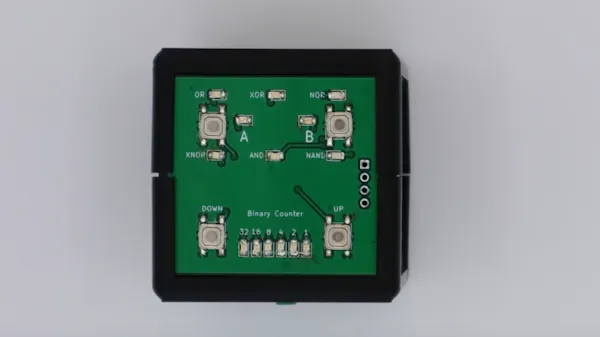

The third facet was most likely probably the most concerned, because it not solely incorporates an similar AVR64DA32 microcontroller as used within the earlier face, but additionally has a collection of six LEDs that act as a show for a binary counter and a number of other different LEDs that present outputs for varied logic gates. For instance, not urgent both button on the PCB will trigger XNOR, NAND, and NOR to all gentle up.
Constructing a case and assembling all of it collectively
With three of the PCB faces utterly designed and fabricated, Dumont then moved onto the tedious step of taking every particular person element and soldering it by hand to its appropriate location. Subsequent, she 3D printed a easy case that lets every PCB slot into one facet and carried out a take a look at match.
Last end result
After loading code onto every microcontroller and testing the boards on their very own, the fidget dice was put collectively and powered on as an entire unit for the primary time. As might be seen in element14’s video right here on YouTube, the three faces of the dice labored precisely as supposed, and Dumont plans on ultimately designing three extra to finish the dice. You possibly can obtain the design recordsdata for this challenge right here on Github or view the invoice of supplies right here on element14’s weblog publish.
