Cedric Kany wished to construct his personal clock, which receives time from the Web and shows a four-digit, seven-segment worth to point when within the day it really is. Sounds easy sufficient, however seven-segment shows are usually far too small to learn at a distance, and addressable WS2812 LEDs didn’t create the white temperature that he wished.

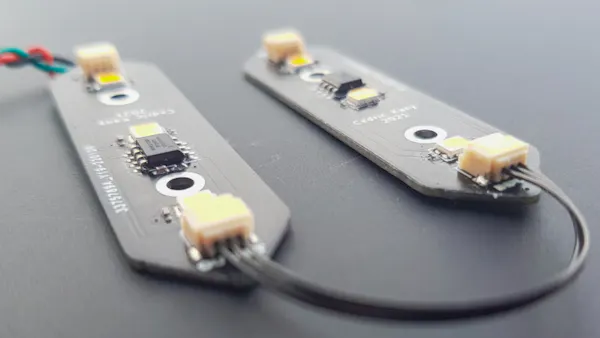

As a substitute of going the normal WS28xx route, or piecing collectively one thing with MOSFETs and LED strips, he as an alternative determined to re-invent the addressable LED wheel, and designed the “flasco phase” PCB. These pointy 59mm lengthy boards, at the moment funding on Kickstarter, characteristic three white LEDs managed by a single WS2811 driver. It’s a quite intelligent idea, as as an alternative of pink, inexperienced, and blue channels, the motive force controls three separate white LEDs. Because it’s utilizing the well-known WS28xx setup, current libraries will work, although with a brand new context color-wise.
Seven flasco segments might be mixed to by way of JST connectors create a full digit. Put 4 digits collectively (28 segments), and you’ve got the mandatory numbering for a superb clock. Commonplace wiring can help as much as 49 segments – maybe permitting for 2 time zones or different performance – and with extra energy insertions you may management far more. Included JST connectors simplify wiring wanted to make your personal distinctive clock, which means you may assemble a chic timepiece with out even touching a soldering iron!
