The concept

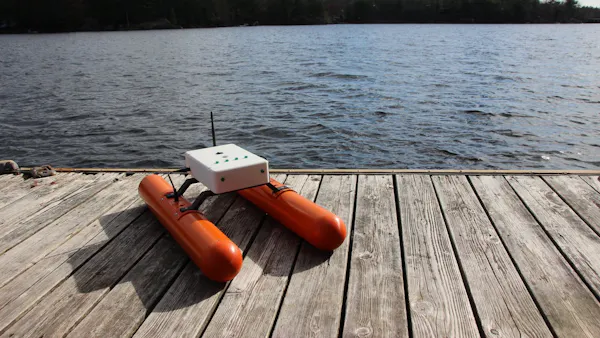

All the way in which again in 2019, Redditor wesgood had the thought to create a miniature boat/pontoon that would not solely float alongside a lake, but in addition steer and achieve this by itself. Aside from producing sufficient thrust to maneuver ahead and steer, this watercraft would wish a option to plot its place and talk with a distant operator throughout a big distance.
An early prototype
To start this challenge, Wes tried designing a easy 3D mannequin, which had a pair of struts and pontoons connected beneath a central platform for further rigidity. However after spending almost $100 on the print and performing some checks, it was found that there have been some enhancements that wanted to be made first.
Designing and constructing a second hull
For this second spherical of engineering, the design started by exploring varied choices for producing ahead momentum, however finally, a pair of water jet pumps had been selected as a result of their compact dimension and since they eliminated the necessity for an exterior rudder. Every pontoon due to this fact must maintain one in every of these pumps, and to scale back value, a PVC pipe was chosen because the housing. Together with the pipe, a few finish caps had been printed and glued to the fronts with a view to give a clean floor and scale back the drag as they transfer via the water.
Identical to the earlier design, barely beefier struts had been 3D-printed and connected to each pontoons utilizing brass inserts and machine screws for an additional robust connection. Lastly, the central platform was screwed into place.
Jet propulsion
Opting to combine a few jet pumps somewhat than a extra conventional propeller system introduced its personal set of distinctive challenges. Those Wes went with are primarily comprised of a single 7.2V DC motor that’s related to an impeller. Because it spins, the impeller attracts up water via the outlet beneath and quickly shoots it out from the again. Nonetheless, this may trigger the craft to turn into barely unstable and even leak water into the pontoons, so Wes had so as to add silicone sealant in the course of the meeting course of to make sure this is able to not be the case.
Digital parts
After ending the boat’s hull, it was then time to deal with the intelligence of the craft, particularly the navigation and management circuitry. For motor management, each pumps had been related to a single 3A dual-motor driver module that takes a lower-voltage PWM sign and boosts it to 1 the motors require. A 9-DoF IMU was added to take steady readings of the boat’s tilt, acceleration, and orientation through the magnetometer. Each the motor driver and IMU had been then related to an Arduino Mega 2560, together with a pair of voltage/present sensors for measuring the remaining battery life. Lastly, a Raspberry Pi 2 operating Ubuntu Server was added, which connects to each the Arduino Mega 2560 and a GPS receiver for dealing with high-level features.
Making a customized PCB
To scrub up the circuitry and make it way more compact, Wes designed and assembled a customized PCB, which slots on high of the Arduino Mega 2560 and acts as a protect. It has connectors for the motor driver, voltage/present sensors, and some I2C headers for potential expansions sooner or later. It even has a small standing LED that lets customers know when the boat is powered on.
Placing all of it collectively
With the entire parts prepared, Wes began to assemble the craft collectively. First, he connected the entire digital parts to a strong 3D-printed plate that has a number of standoffs for mounting. Subsequent, the 2 pontoons had been screwed onto the struts and capped at each ends with both the pump or finish cap. Lastly, a canopy was added to the highest, which sealed off batteries and delicate electronics from coming into contact with the water.
Navigation software program
The ultimate stage of this challenge concerned loading software program that would enable customers to view telemetry and management the robotic. Wes’s cell app has a number of widgets that lets him see the present place given by GPS on a map, the ability going to the motors at anybody time, pitch, roll, and the heading, and a digital joystick to regulate the velocity and route of the craft.
There may be even a option to plot waypoints and have the robotic routinely pivot to match the right heading and finally comply with them to the top.
For extra details about this challenge, you’ll be able to view Wes’s detailed writeup right here on this Imgur gallery.
