Direct Granules Extruder Makes use of Plastic Waste as Filament

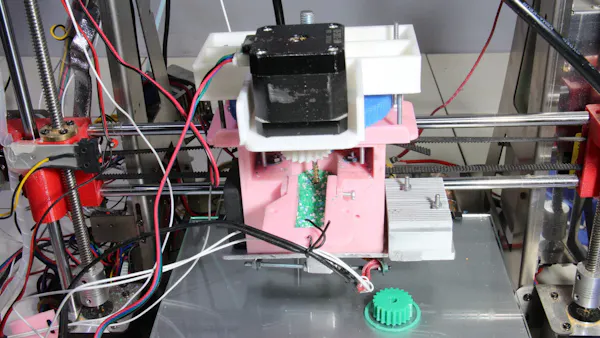

By utilizing off-the-shelf elements and open supply {hardware}, Norbert Heinz developed a cheap Direct Granules Extruder for desktop 3D printers. It depends on a standard wooden screw as an auger to drive the granules from the chilly zone. The entire idea behind this undertaking is easy: break down plastic waste into pellets, soften them, and extrude them in a modified 3D printer. Nevertheless, it nonetheless has some points that have to be solved. Heinz is at present engaged on these and has produced some fairly artful prints. It’s additionally able to printing sugar!

Not solely that, however he additionally discovered a approach to make use of uncooked materials as granule, which prints out numerous supplies too tender or brittle to be processed as filament. He produces the uncooked materials by grinding up previous plastic bottles in a blender. The extruder additionally operates with a Zonestar QR2 printer mechanism, a weak stepper motor, and a heating cartridge.

It consists of a coldend and hotend, made from a 16x16mm sq. bar. A bit of glass separates each zones to attenuate warmth stream from the recent to the chilly aspect. A 10mm Teflon tube runs from the coldend to hotend, making certain much less friction on the partitions. The screw conveyor contains a 5mm wood screw with a 25mm wire soldered to the highest. Heinz expanded the brass nozzle, permitting the plastic to maneuver by way of with out a lot resistance. Each the heating cartridge and temperature sensor are positioned to supply ample distance from the central gap. The screw connection between the hotend and coldend is made utilizing two lengthy items of 3mm threaded rods to supply a low warmth switch. Lastly, the granules transfer by way of the coldend to the hotend together with a Teflon tube.

With this setup, he printed each a gear and a rocket. The gear, measuring 25x25x10mm with a 0.2mm layer thickness, was printed from sugar, which modifications to a brownish coloration by way of the nozzle as a consequence of a caramelization response occurring at temperatures larger than 140° C. Nevertheless, the floor isn’t very easy as a result of the floor rigidity interacts with the decrease viscosity of the melted sugar. The rocket, made from PLA materials, was printed for the 2021 Hackaday prize, putting fifth total. The rocket didn’t print correctly on the high as a result of a cooling fan wasn’t current.
