The concept
A few months in the past, Lorraine from element14 Presents designed and constructed an interactive window mission that used a collection of capacitive contact pads stationed in her entrance garden which may very well be touched to switch the present coloration of the LEDs within the show. Nevertheless, in her latest iteration of the mission, she wished to develop upon this concept by making the complete system touch-less and usable from a distance in order that it’s extra handy to work together with.
A earlier design
The earlier system was comprised of two fundamental components. The primary and fundamental element was a micro:bit that was stuffed inside a water-resistant field and had three capacitive buttons run alongside the surface that may very well be touched. After a person interplay had occurred, information could be transmitted alongside a number of underground wires to a Raspberry Pi positioned simply inside the home, and its job was to manage two units of RGB lights. Sadly, this technique turned out to be fairly unreliable and would give inconsistent responses, particularly throughout inclement climate.
Elements required
In an effort to enhance upon the earlier design, Lorraine began by figuring out which elements might keep and which of them wanted to get replaced. Her preliminary thought was to include a time-of-flight sensor into the waterproof housing and make the most of the preexisting micro:bit/Raspberry Pi setup to ship information when an interplay occurs. To go along with the VL53L0X ToF module, she additionally picked out the Raspberry Pi NoIR Digicam V2 module for pc imaginative and prescient when it is darkish outdoors.
Utilizing time-of-flight
After loading the MakeCode visible coding improvement setting for the micro:bit and connecting the VL53L0X by way of I2C to the board, Lorraine created a fast program that continuously reads information from the sensor and logs it by way of UART. Lastly, two thresholds have been added that make the micro:bit solely ship information to the Pi when a person is inside a predetermined vary, which cuts down on the quantity of pointless information transfers. On the Pi’s facet, three separate thresholds have been created that change between crimson, inexperienced, and blue relying on the present distance worth.
Detecting poses
Though this considerably labored, the readings have been fairly inconsistent and had a big variation, so a plan B was made that integrated the digicam module and pc imaginative and prescient to manage the lights as a substitute. A change to the Ubuntu working system was required as a way to get pose estimation working appropriately, and after changing the sadly damaged Pi NoIR digicam with a second one, the Pi might efficiently see poses.
Celebration on the entrance garden

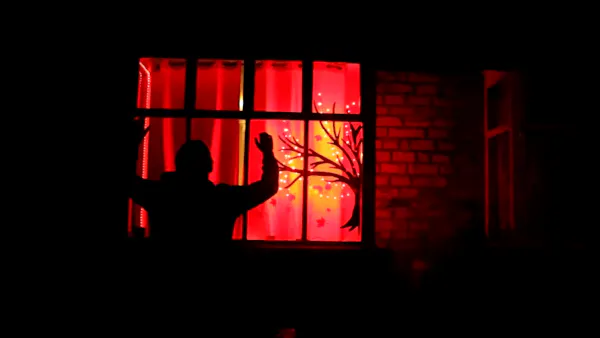

In element14’s demonstration video/information, you’ll be able to see how Lorraine might elevate her proper hand to show the lights crimson or elevate her left hand to show them blue. Nevertheless, the get together mode, which is triggered by elevating each palms concurrently, might be the very best one, because it quickly alternates between crimson and blue for a strobe mild impact. To see the invoice of supplies record and code used on this mission, you’ll be able to go to its weblog submit right here on element14.
