The thought
Audio spectrum analyzers are wonderful gadgets that permit for a consumer to simply see which frequencies are strongest within the sound being inputted. Sometimes, they include both an LED matrix or a display screen that exhibits vertical and/or horizontal bars which correspond to the frequency being monitored, whereas the extent is the amplitude. However for Yannick Turcotte, he wished to get a bit extra artistic and construct a spectrum analyzer that homes a sequence of unusual IN-13 linear Nixie tubes.
What’s the IN-13?
Not like the Nixie tubes virtually everybody are acquainted with, the IN-13 is an analog and linear show, the place the quantity of distance illuminated by the glowing fuel inside is proportional to the present flowing by means of the system. Because of this identical to different Nixie tubes, IN-13s require a voltage supply of 140V DC, besides in addition they want an analog enter to manage them somewhat than a strictly digital one.
Getting frequency information
Turcotte designed his frequency analyzer to seize information by way of a single microphone aspect or, optionally, a line-in microphone by way of a pair of RCA plugs. From right here, the sign go by means of a low-noise filter that eliminates any stray sounds within the decrease frequencies for cleaner audio, and it then will get handed into an MSGEQ7. This chip’s job is to absorb sound and carry out a Fourier remodel on it, thus splitting the sign into seven distinct frequency bands. As a result of there’s solely a single output pin, the IC comprises an inner multiplexer that’s superior by sending a pulse to the STROBE pin, which is carried out by an ATmega328p microcontroller.
PCB design and meeting
Arising with the schematic and testing every element individually took a number of weeks of laborious work, however as soon as he had the design, Turcotte was in a position to create a board design that would home all the pieces in a single compact space. Because of the abundance of small SMD parts, a stencil was used to use a factor layer of solder paste, after which the parts had been fastidiously positioned with tweezers and at last had scorching air utilized to safe them to the floor.

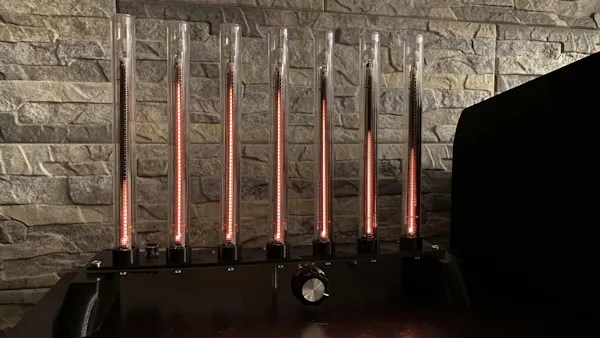

He additionally made a small stand that props up seven holding tubes for the IN-13 gauges by 3D printing a base after which gluing in acrylic tubing.
Driving the show
When the spectrum analyzer is switched on, the microcontroller is initialized to multiplex the primary tube, which additionally matches with the MSGEQ7 spectrum analyzer chip. When it’s time to show the following up to date frequency, the MCU toggles the MSGEQ7’s STROBE pin after which rapidly switches the multiplexer to the following tube, the place the output of the IC dictates the quantity of present the Nixie tube receives by means of a easy and adjustable driver. There may be additionally a big potentiometer on the entrance that may change the incoming audio sign’s power to make sure the proper vary is proven.
To learn extra about this mission, you’ll be able to go to Turcotte’s write-up right here on Instructables.
