A crew of engineers at Finland’s Aalto College have designed a brand new, cylindrical transmitter for wi-fi charging methods — producing a donut-shaped discipline that, they declare, will likely be extra handy and dependable for shopper use than the standard flat-mat selection.
“We got down to create a easy, low-cost system utilizing solely a single energy supply,” explains postdoc analysis Nam Ha-Van of the crew’s work, which focuses on a cylindrical energy coil created in order that the wire on the high of the coil is wound in the wrong way to the wire on the backside with a Z-shaped bridge between them.
A cylindrical transmitter might assist to make wi-fi energy simpler to make use of, in addition to extra sturdy. (📷: Ha-Van et al)
When energized, the present flows via each halves of the coil in opposing instructions and in doing so produces a complementary pair of magnetic fields: One discipline flowing from the center of the cylindrical coil across the high winding and again in once more; the opposite from the center to the underside and again in once more. The outcome: A fair magnetic discipline spherical the center of the coil.
That discipline can then be used to cost or energy transportable gadgets wirelessly, and comes with some advantages over conventional wi-fi energy transmission methods: Gadgets could be positioned anyplace within the cost space, and no matter place or orientation will cost with equal effectivity.

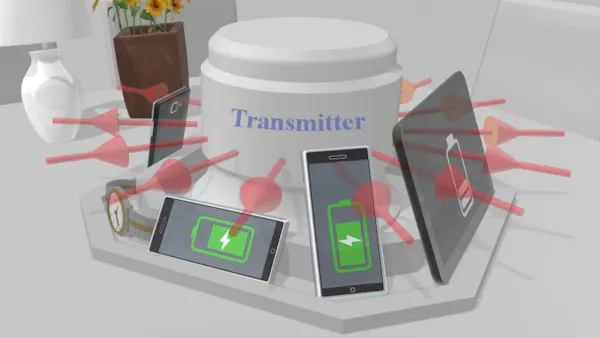

The donut-shaped discipline prices gadgets no matter place or orientation. (📷: Ha-Van et al)
In testing a prototype implementation of the system achieved 72.4 % DC-to-DC effectivity, supporting a load of 13W at a 6.78MHz working frequency. “This was only a proof of idea,” explains co-author Yining Liu. “Now we are able to work to enhance the effectivity — possibly to round 90 % — and likewise the ability.”
The crew’s work has been printed below open-access phrases within the journal IEEE Transactions on Industrial Electronics as an early entry article.
